Schematic error in mode circuit

Published: February 21, 2026

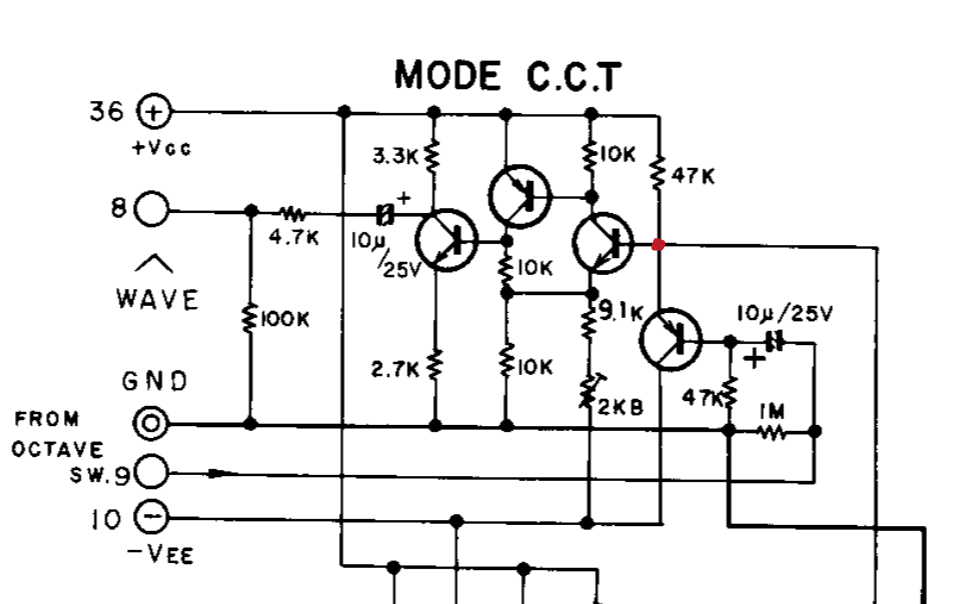

Marked in red: missing junction between base of NPN, emitter of PNP and 47k resistor

I confirmed this error by tracing the board and comparing with the Korg 770 schematics.
